Bert

This is a little game for the 2022 NOMAM's BASIC 10-liners Contest. This program fits in the PUR-120 category, and it was written in FastBasic 4.5.1 for the 8-bits ATARI XL/XE. Development started on 2020-05-12, and it took 6 days. The final version's date is 2022-03-20.

UPDATE: It obtained the 4th place of 13 entries in the category.


Description

Bert has to change the color of the 5 pyramids to green, but Bally tries to make him fail the mission.


Instructions

BERT start Bert starts in the top of the first pyramid. This is the only safe spot in it. At top appears the number of lives.
BERT move Use your joystick to move Bert though the pyramid. The joystick has to be rotated 45° to the right, i.e. you should use it with the red button centered on top.

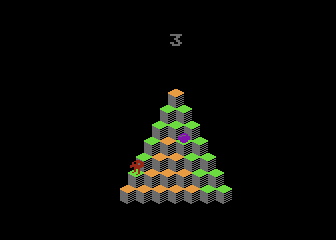

BERT opponent From time to time, an enemy called Bally will travel through the pyramid. Avoid him!
BERT spots Every time you reach a spot, its color might change. Try to change all the spots to green in order to complete the pyramid.

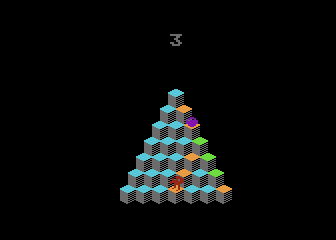

BERT colors While in the first pyramid you can get the green at the first jump in to it, in other pyramids you need to jump more times into every spot in order to make them all green.
BERT crash Every time Bally gets Bert, a try is lost. Bally will increase his speed and frecuency as time runs.
BERT fall If you make Bert jump out of the pyramid, you will also loose a try, and all the work already done in that pyramid will be lost.

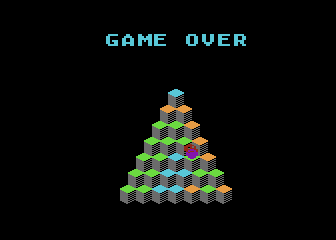

BERT gameover When there are no more tries, the mission has failed and the game is over. Press the button to try again.

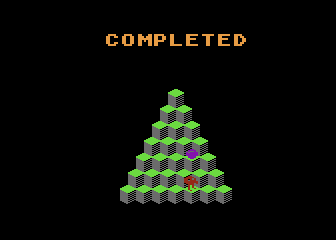

BERT win You win only when all 5 pyramids were converted to green ones.

Development of the game

I've always liked the Q*bert character, and decided to program his game for the tenliners contest. I started with a simple pyramid design in graphics mode 12 (ANTIC mode 4) in order to test how it would look and if I could manage all of its states in TurboBASIC XL or FastBasic. I started coding a prototype in FastBasic, because I also designed the sprite for Q*bert and I wanted to see him moving through the pyramid. I also found a formula for the color transitions of the cubes, 5 different sequences for that amount of levels, and it looked great.

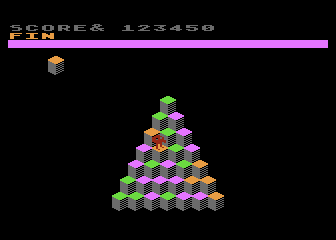

BERT proto 1

Proof of concept

I was surprised that the code to make the character move through the pyramid without smooth transitions between spots was very simple, so I rewote it in Atari BASIC to measure how much space it would require. Of course, I ignored the bitmaps and sprites, and selected the text mode 2 (ANTIC mode 7) to display the pyramid and the character. That branch of this project was called Hubert, and it was submitted to 2021 BASIC tenliner contest for the PUR-80 category.

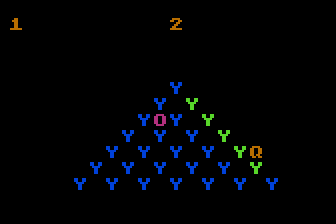

HUBERT

Hubert, a text based version of Q*bert

Back to this project, I realized that the graphics and sprites used too much coding space for the PUR-120 category, the one I was pointing to, so it was archived. Moving to EXTREM-256 was a step I didn't want to do for this game.

More than a year later, being lack of ideas for the 2022 contest, I reviewed my archived projects, trying to find some to finish. With the experience of Hubert, I decided to remove some of the features I planned for the game, in order to fit it in 1200 characters (10 lines of 120 chars each).

I borrowed back the enemy routine from Hubert, but the cost was to remove the random colors for the cubes. The game didn't have sound, so I also got them from Hubert, but I had to do many code optimizations to fit them. By this time, I had decided to cut down the project in order to include some other pending items, so I removed the score and the target cube (there won't be random colors) from the screen. This game became a graphical version of Hubert, with similar gameplay and controls.

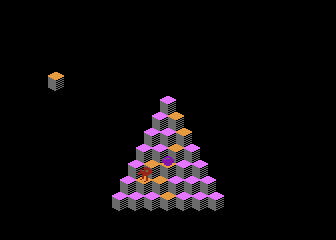

BERT proto 2

Prototype with a moving opponent like in Hubert

My original ideas for this project are still there. If I have enough time, I'll try to include them in a EXTREM-256 version of it.


Download and try

Get the BERT.ATR file and set it as drive 1 in a real Atari (or emulator). Turn on the computer and the game should start after loading. A joystick in port 1 is required, and it has to be rotated 45° clockwise to play.


The code

The abbreviated BASIC code is the following:

The full and expanded BASIC listing is:


Bert
(c) 2020-2022 Víctor Parada
2022-03-20

$A150-$BC20 cleaned area by GR.8
$B000 FastBasic PMBASE when in GR.0
$BC40 GR.0 screen data area dpeek(88) Not used!
$BBA0 GR.12+16 screen data area dpeek(88)
$BB80........GR.12+16 display list dpeek(560)
graphics 8
Cleans 8K of top RAM
graphics 28
Sets 40x24 ANTIC 4 mode
pmgraphics 1
Enables P/M; graphics, single line resolution
h=adr("{binary data}")+1
Binary data
- P/M bitmaps for Bert (60 bytes)
- Color palette (8 bytes)
- Completed message (9 bytes)
- Game over message (9 bytes)
- P/M bitmap for the enemy (10 bytes)
data r() byte = "{binary data}"
Color offsets list
move adr("{binary data}"),$B20F,91
CHARSET: New charset is stored at PMBASE (in the unused P/M area)
Defines bitmaps for some of the second half for ANTIC 4 mode
move $E088,$B008,376
Copies the first half to be used by scoreboard in ANTIC 7 mode, shifted by 16 chars but without the zero
poke 756,$B0
Enables new charset
move h+60,704,8
- Color palette (9)
dim p(99),q(99) byte,o(99) byte
Cubes arrays
- P: Screen position of a cube
- Q: Current color of a cube
- O: Target color of a cube
o(0)=99
q(0)=99
Prepares arrays as strings to be compared in a single string expression
dpoke $BB86,7
Modifies the Display List: replaces 2 lines with a graphics mode 2 at the TOP, followed by a blank scan line to partially compensate
do
Main loop
  l=1
Starting level
  n=3
Lives
  while l<6 and n
Round loop
5 levels while alive
    print #6,"{binary data}"
Clears the playfield
    b=2+(l>1)-(l=3)
Initial color of the cubes
    for x=1 to 7
      for y=1 to 8-x
Draws the cubes
        z=x+y*9
Relative position of the cube
        a=$BC18+x*81+y*79
Position in screen of a cube
        p(z)=a
Sets position of the cube
        q(z)=b
Sets color of the cube
        o(z)=1
Sets cube as valid
        exec d 1
      next y
    next x
Put the cube in the playfield
    x=1
    y=1
    z=10
Initial position of the player
    i=1
Timer
    poke $BBD2,n
Displays the available lifes
    e=1
    f=0
    exec q
Displays the player at the initial position
    u=9
    v=0
Enemy position
    r=0
Enemy delay timer
    repeat
Game loop
      poke 77,0
Disables ATRACT mode
      k=stick(0)
Delays joystick read
      if i>20 and k<15 then j=k
Saves joystick position if moved in the second half of the wait
      if i=0
Checks if it's time to move
        if j<15
Joystick moved?
          e=(j=7)-(j=11)
Moved in X axis?
          f=(j=13)-(j=14)
Moved in Y axis?
          if e+f
Moved?
            z=z+e+f*9
            x=x+e
            y=y+f
Updates current position
            exec q
Displays the player in the new position
            if o(z)
Checks if its stil in the pyramid
              b=q(z)-1
              if b=0 then b=1+(l>2)+(l>4)
Calculates new color of the destination cube
              q(z)=b
              a=p(z)
Assigns new color to the cube
              exec d 0
            endif
Displays the new cube
            w=9
          endif
        endif
Enables jump FX
        j=15
      endif
Releases joystick (in the buffer)
      sound 0,161,12,w
Jumping FX
      w=w-(w>0)
Next step for the jump FX
      i=(i+1)*(i<31)
      m=o(z)=0 or z=v
Fell out or hit the enemy?
      if u+l>14
Triggers the enemy
        v=10
Puts the enemy in the top
        u=0
Counter for the number of moves
        r=0
      endif
Unsets the delay to activate it
      if r<1 and m=0
        inc u
Move enemy?
        v=(v+1+8*rand(2))*(u<8)
Calculates next position
        a=v mod 9
        b=v/9
Computes the new coordinates
        mset $B400,256,0
Removes the bitmap
        pmhpos 0,128+4*(a-b)
Moves the player to its horizontal position
        if v then move h+86,
          $B43D+16*(a+b),10
Displays the proper bitmap at the vertical position
        r=90-l*5
Resets the enemy response timer
        m=v=z
      endif
Hit the player?
      dec r
Decreases enemy response timer
    until $(adr(q))=$(adr(o)) or m
Round ends when pyramid is completed or when killed
    for j=0 to 99
      sound 0,150-j+j*m,10+2*m,8
    next j
    sound
End of round FX: wheep for success, brrrr when failed
    n=n-m
Updates the remaning lives
    l=l+1-m
Sets tyhe next level/round
  wend
End of game loop
  move h+68+m*9,$BBCE,9
Displays a final message: completed or game over
  while strig(0)
  wend
Waits for the trigger to play again
loop
End of main loop
proc d c
Draws a cube.
Requires the screen position in A and its color in B, C is the parameter, X and Y are the coordinates of the cube (required to verify edges)
  poke a,$42+2*(x>1)+r(b)
  poke a+1,$46+2*(y>1)+r(b)
Top (color) row
  dpoke a+40,$4B4A
Middle row
  if c then dpoke a+80,$4D4C
endproc
Displays the bottom of the cube only when it is not updating the color
proc q
Moves the player.
X and Y are the coordinates of the destination cube, E and F are the moving direction on both axes (just one is not zero)
  pause
Waits for VBLANK
  mset $B500,256,0
Removes the bitmap
  pmhpos 1,128+4*(x-y)
Moves the player to its horizontal position
  move h+45*(e<0)+15*(f>0)+30*(f<0),
    $B538+16*(x+y),15
endproc
Displays the proper bitmap at the vertical position. Image is selected based on the last moving direction
